Cadastral parcels - legal entity (FR)
13_cadastral-parcels-legal-entity.Rmd
library(Rsequoia2)
#> Attempting to load the package cache ... No cache found.
#> Will try to reconfigure qgisprocess and build new cache ...
library(tmap)
library(openxlsx2)
library(sf)
#> Linking to GEOS 3.12.1, GDAL 3.8.4, PROJ 9.4.0; sf_use_s2() is TRUEAs always, we need to setup a Sequoia dir (temporary in this case)
seq_dir <- file.path(tempdir(), "MY_FOREST")
dir.create(seq_dir)What is Legal Entity.
In France, legal entity is known as “Personne morale”. Unlike a physical person, a legal entity has its own juridical existence and is identified by national codes such as SIREN or SIRET. In Forestry, typical entities include “groupements forestiers” or companies.
France provides open datasets that describe all cadastral parcels owned by legal entities. These files, published by the *Direction Générale des Finances Publiques (DGFiP), allow users to retrieve cadastral parcels for a given owner.
Rsequoia2 give acces to this dataset and helpers to
search specific owner.
Retrieve legal entity owner
get_legal_entity() function download and prepare data as
a Sequoia matrice.
There is a cache system to this function to avoid downloading each
time. By default cache = NULL which downlaod data in a
dedicated cache dir (see tools::R_user_dir()).
You should keep this directory but if for any reason you need raw
data elsewhere use cache arg.
Be aware that you can load data from a department code or an insee code. The first can be a bit time-consuming but you can then search all selected dep(s) if owner have cadastral parcels accros multiple commune.
# cp: cadastrals parcels
insee <- c("29158", "29165")
legal_entity_cp <- get_legal_entity(insee)
#> ℹ Reading CSV files...
#> ℹ Preparing CSV files...
#> ℹ Generating matrice...
#> ✔ Matrix successfully generated (2329 rows).
head(legal_entity_cp)
#> IDENTIFIANT PROPRIETAIRE IDU REG_NOM REG_CODE DEP_NOM
#> 1 <NA> LES TERRES BLEUES 29158000AB0005 BRETAGNE 53 FINISTERE
#> 2 <NA> LES TERRES BLEUES 29158000AB0006 BRETAGNE 53 FINISTERE
#> 3 <NA> LES TERRES BLEUES 29158000AB0007 BRETAGNE 53 FINISTERE
#> 4 <NA> LES TERRES BLEUES 29158000AB0008 BRETAGNE 53 FINISTERE
#> 5 <NA> TI PORZH LES ROCHERS 29158000AB0011 BRETAGNE 53 FINISTERE
#> 6 <NA> L ATELIER 89 29158000AB0025 BRETAGNE 53 FINISTERE
#> DEP_CODE COM_NOM COM_CODE INSEE PREFIXE SECTION NUMERO LIEU_DIT
#> 1 29 PENMARCH 158 29158 000 AB 0005 DES GOELANDS
#> 2 29 PENMARCH 158 29158 000 AB 0006 DES EMBRUNS
#> 3 29 PENMARCH 158 29158 000 AB 0007 SAINT GUENOLE
#> 4 29 PENMARCH 158 29158 000 AB 0008 DES GOELANDS
#> 5 29 PENMARCH 158 29158 000 AB 0011 ROGER QUINIOU
#> 6 29 PENMARCH 158 29158 000 AB 0025 PIERRE ET JEAN DUPOUY
#> SURF_SIG SURF_CAD
#> 1 NA 0.0370
#> 2 NA 1.2358
#> 3 NA 0.0097
#> 4 NA 0.0765
#> 5 NA 0.0339
#> 6 NA 0.0237
#> SOURCE
#> 1 https://data.economie.gouv.fr/api/v2/catalog/datasets/fichiers-des-locaux-et-des-parcelles-des-personnes-morales
#> 2 https://data.economie.gouv.fr/api/v2/catalog/datasets/fichiers-des-locaux-et-des-parcelles-des-personnes-morales
#> 3 https://data.economie.gouv.fr/api/v2/catalog/datasets/fichiers-des-locaux-et-des-parcelles-des-personnes-morales
#> 4 https://data.economie.gouv.fr/api/v2/catalog/datasets/fichiers-des-locaux-et-des-parcelles-des-personnes-morales
#> 5 https://data.economie.gouv.fr/api/v2/catalog/datasets/fichiers-des-locaux-et-des-parcelles-des-personnes-morales
#> 6 https://data.economie.gouv.fr/api/v2/catalog/datasets/fichiers-des-locaux-et-des-parcelles-des-personnes-moralesSearch legal entity owner
After loading the file you can use helpers
search_legal_entity().
This helpers relies on a text-normalization applied to both the inputs and the corresponding columns of the matrice. This makes the search robust to accents, punctuation, spacing irregularities and case differences.
Below we search all GFA (“Groupement Foncier Agricole”).
search_mat <- search_legal_entity(legal_entity_cp, prop = "gfa")
unique(search_mat$PROPRIETAIRE)
#> [1] "GFA DE LA TORCHE" "GFA ADPF"search_legal_entity() can also support multiple search
pattern:
search_mat <- search_legal_entity(legal_entity_cp, prop = c("conservatoire", "espace", "naturel"))
unique(search_mat$PROPRIETAIRE)
#> [1] "CONSERVATOIRE DE L ESPACE LITTORAL ET DES RIVAGES LACUSTRES"
#> [2] "CONSERVATOIRE DE L'ESPACE LITTORAL ET DES RIVAGES LACUSTRES"
#> [3] "SCI ESPACE INTERIEUR"Finally, lieu_dit can also be seached:
search_mat <- search_legal_entity(legal_entity_cp, lieu_dit = "phare")
unique(search_mat[,c("PROPRIETAIRE", "LIEU_DIT")])
#> PROPRIETAIRE LIEU_DIT
#> 692 LA VOILERIE DU PHARE
#> 696 379 RUE DU PHARE -PENMARCH DU PHARE
#> 707 ETAT PAR DIRECTION DE L IMMOBILIER DE L ETAT DU PHARE
#> 710 COMMUNE DE PENMARCH DU PHARE
#> 715 ECKMUL DU PHARE
#> 720 VINCEAUR DU PHARE
#> 745 SCI BOULANGERIE COAT PIN DU PHARE
#> 749 BRISE DU LARGE DU PHARE
#> 768 SCI PLOUGONVEN DU PHARESave to start Sequoia process
Note that the legal entity dataset doesn’t provide geometry
! It’s used to generate an excel matrice (“*_matrice.xlsx”) to
start a Sequoia process. seq_xlsx() function can be used to
generate it.
Notice that the data.frame generated with
get_legal_entity() is already formated for Sequoia process.
This mean you have the "IDENTIFIANT" columns. To avoid
filling it in excel, we encouraged you to do it before saving.
id <- "MY_FOREST"
search_mat$IDENTIFIANT <- id
seq_write(
x = search_mat,
key = "matrice",
dirname = seq_dir,
id = id
)
seq_parca(seq_dir)
#> ℹ Downloading BDP from IGN...
#> ✔ 12 of 13 ETALAB geom successfully replaced with BDP geom.
#> ✔ No area inconsistencies (cadastre vs GIS) detected.
#> ✔ Layer "v.seq.parca.poly" with 13 features saved to 1_SEQUOIA/MY_FOREST_SEQ_PARCA_poly.gpkg.
#> ✔ Table "x.seq.matrice" saved to MY_FOREST_MATRICE.xlsx.
#> ✔ _matrice.xlsx also saved as MY_FOREST_MATRICE_20260402T161135.xlsx for safety.

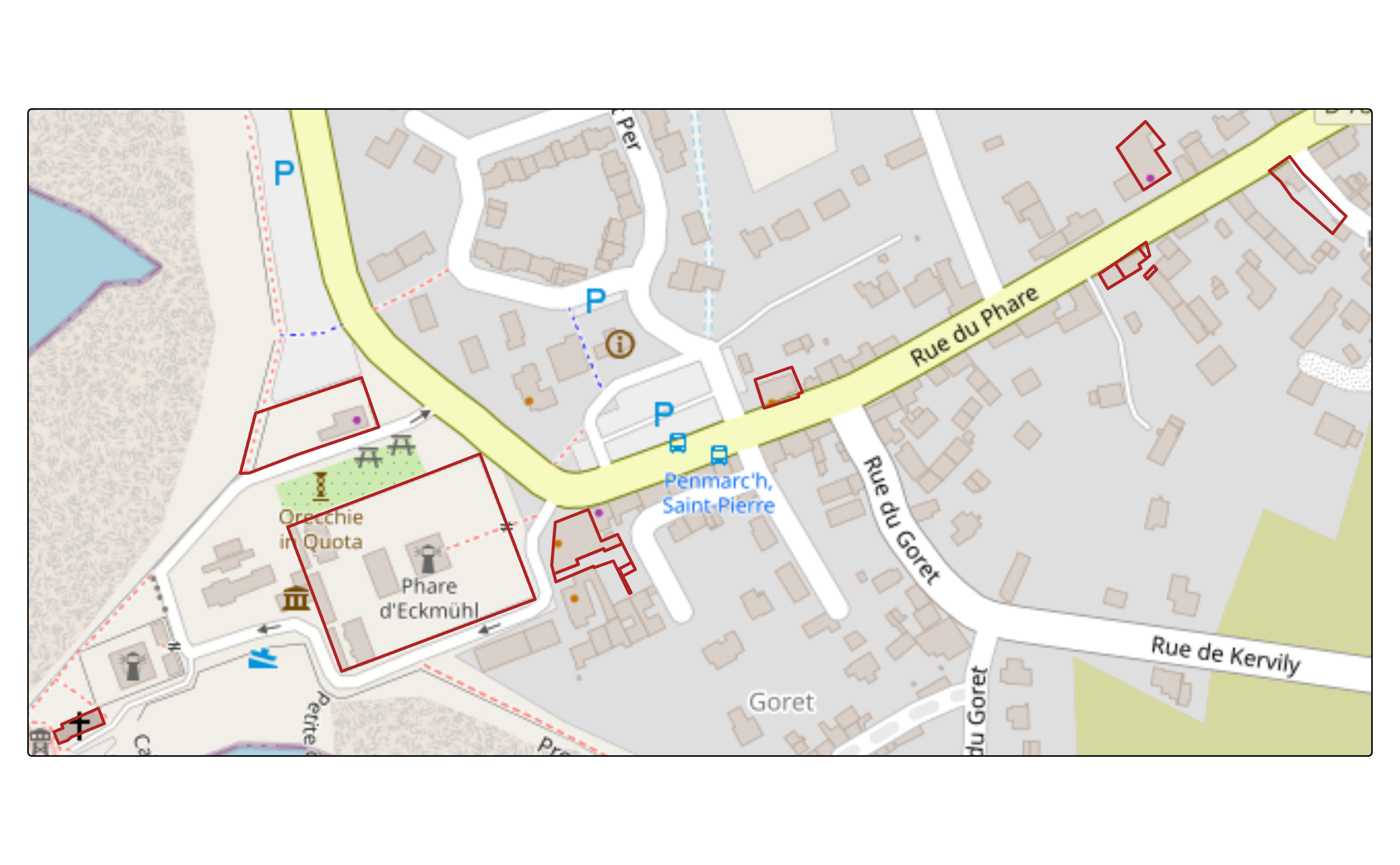

parca <- seq_read("parca", seq_dir)
tm_tiles("OpenStreetMap")+
tm_shape(parca)+
tm_borders(col = "firebrick", lwd = 2)
